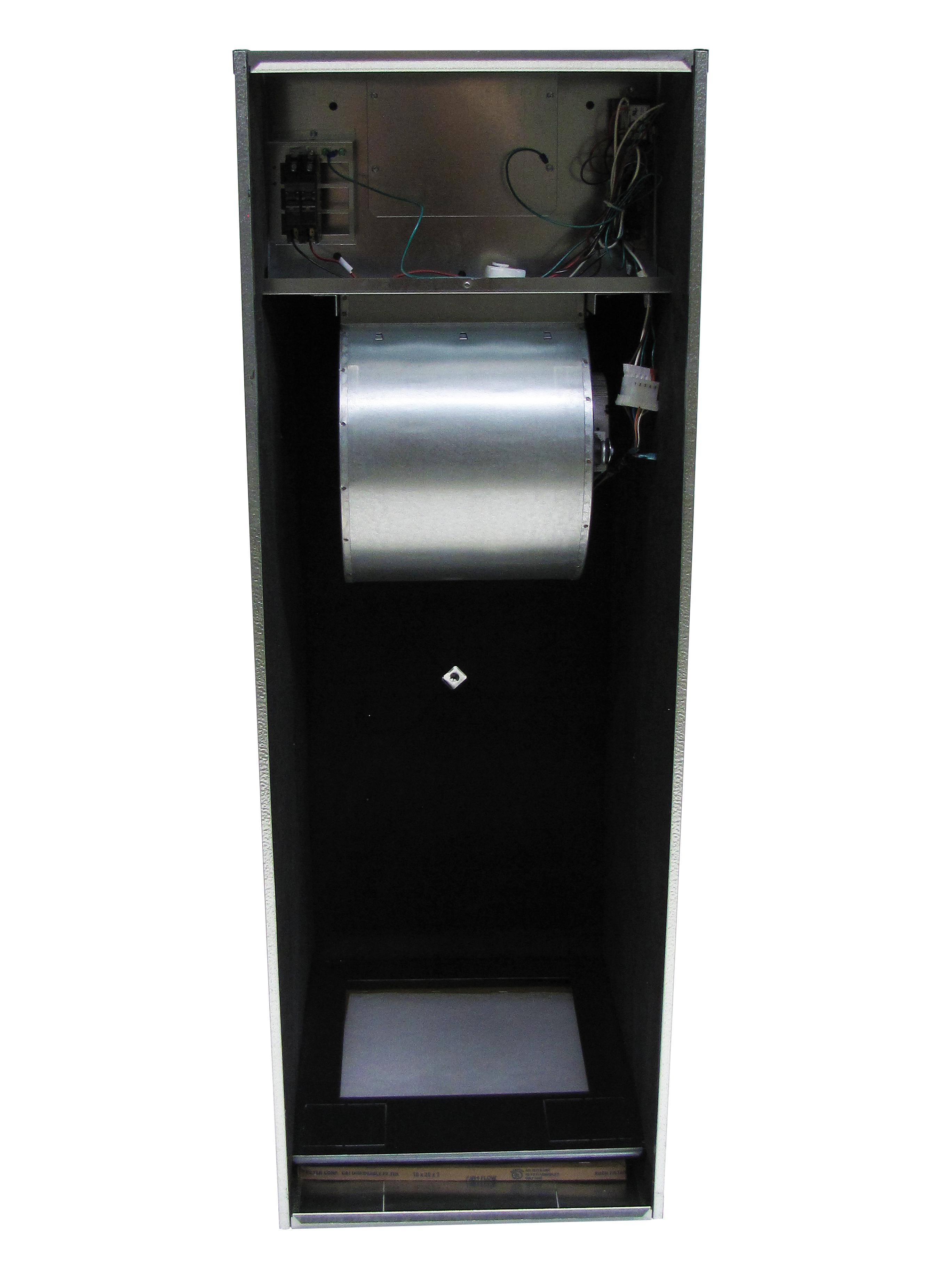

AED/AEU Series Manufactured Home Upflow/Downflow ECM Electric Furnace
Features and Benefits
BENEFITS & ENHANCEMENTS:
• One piece cabinet, reducing time and effort when field converting airflow orientation. Unit is convertible to either orientation with the correct door/ accessories.
• Reduced air handler weight.
• Heat kits available in both field and factory installation kits.
• AEU/D-S & AEU/D-L one-piece cabinet design fits up to a 27.5 tall coil.
• Electrical access from both sides of the cabinet.
• More room in cabinet for larger coils, as energy efficiencies increase, while maintaining overall cabinet dimensions.

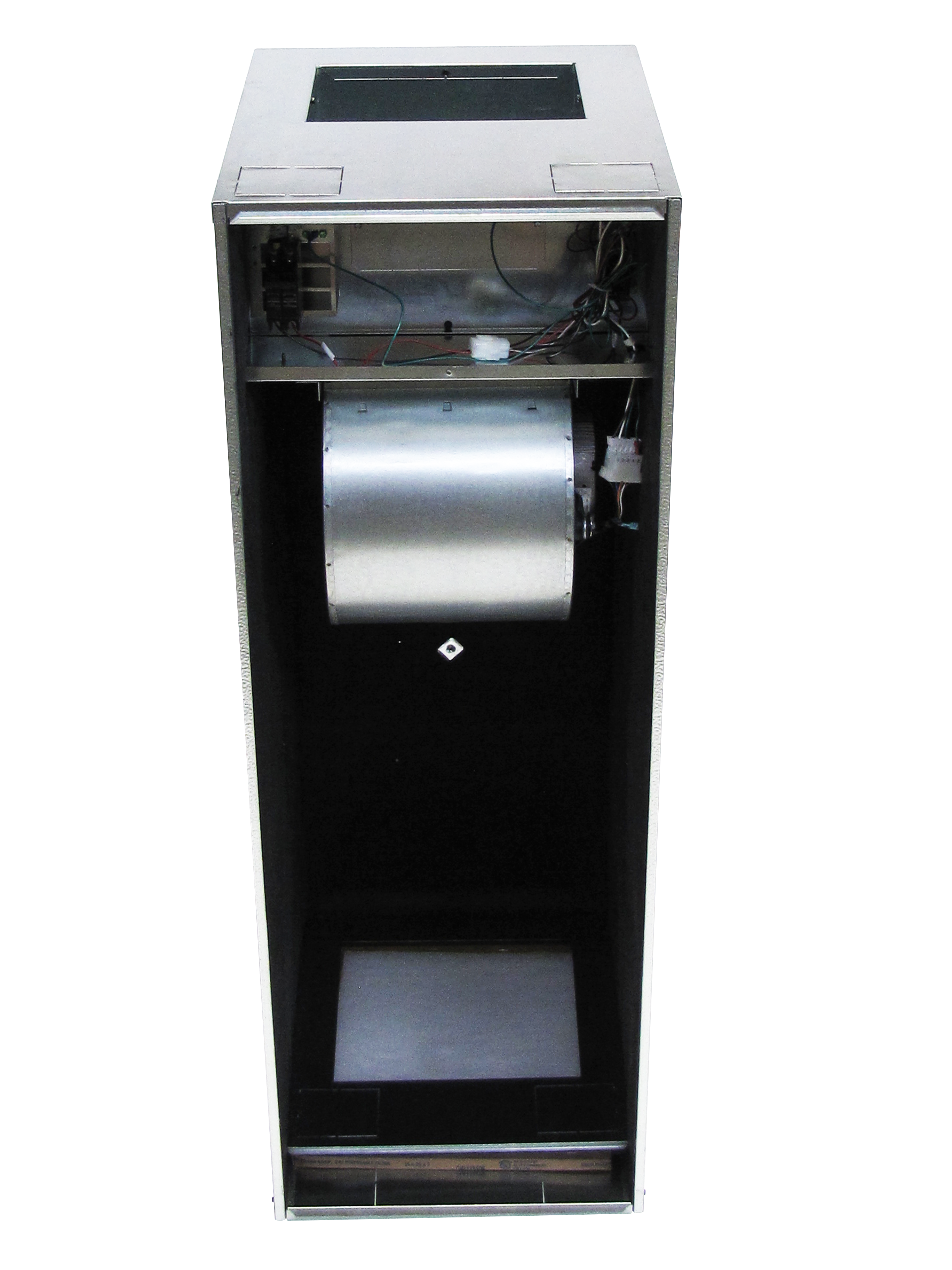

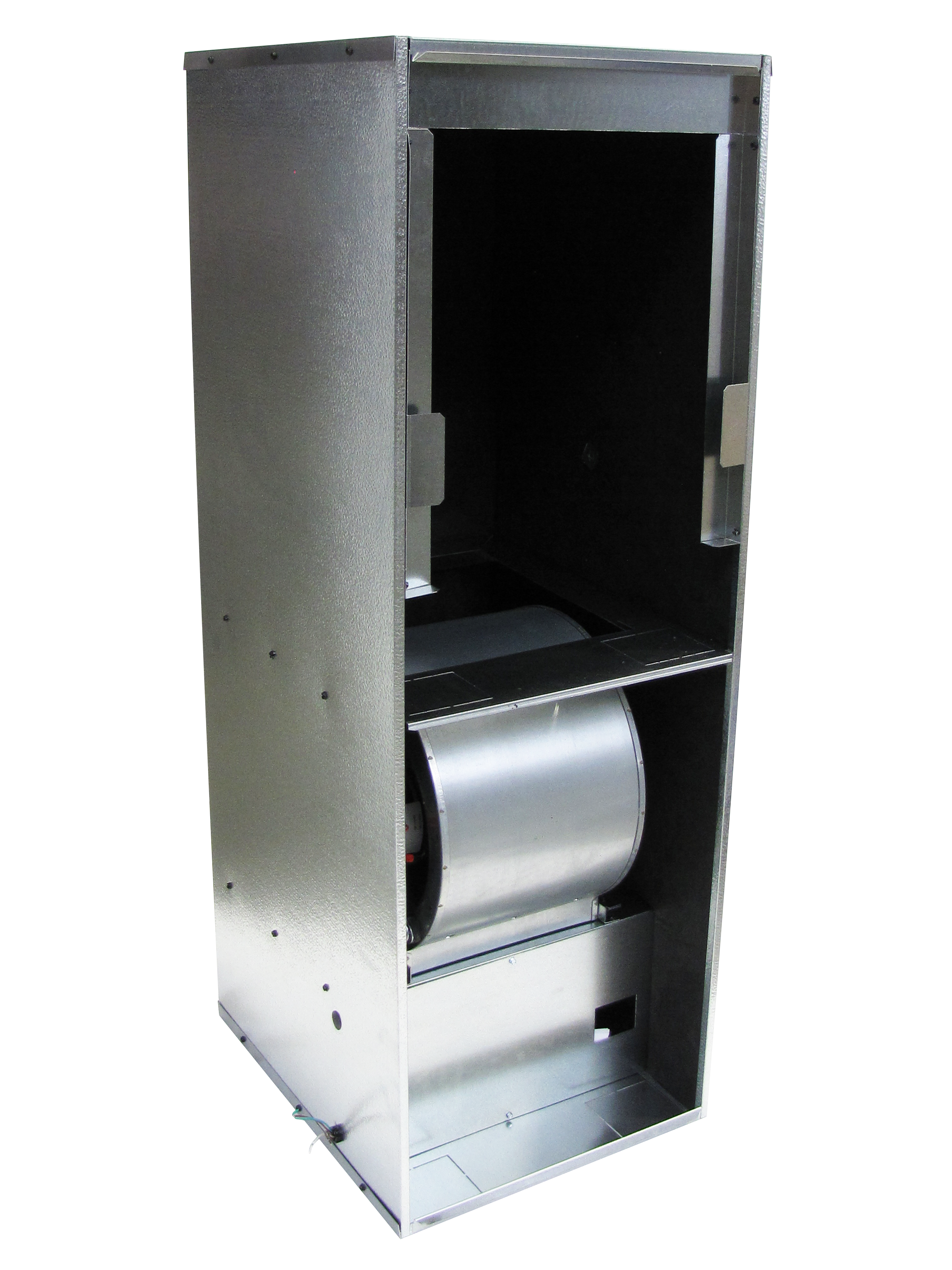

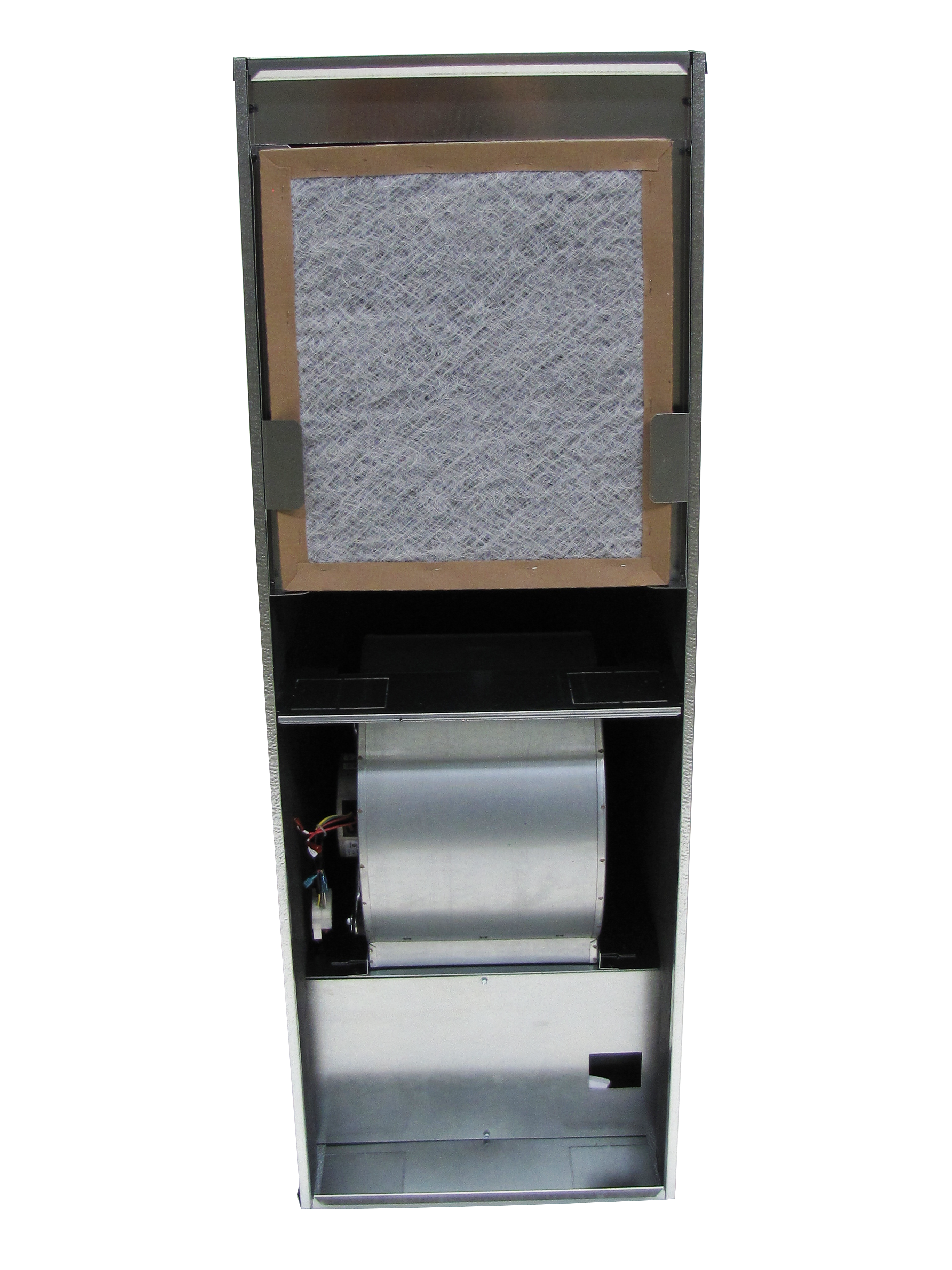

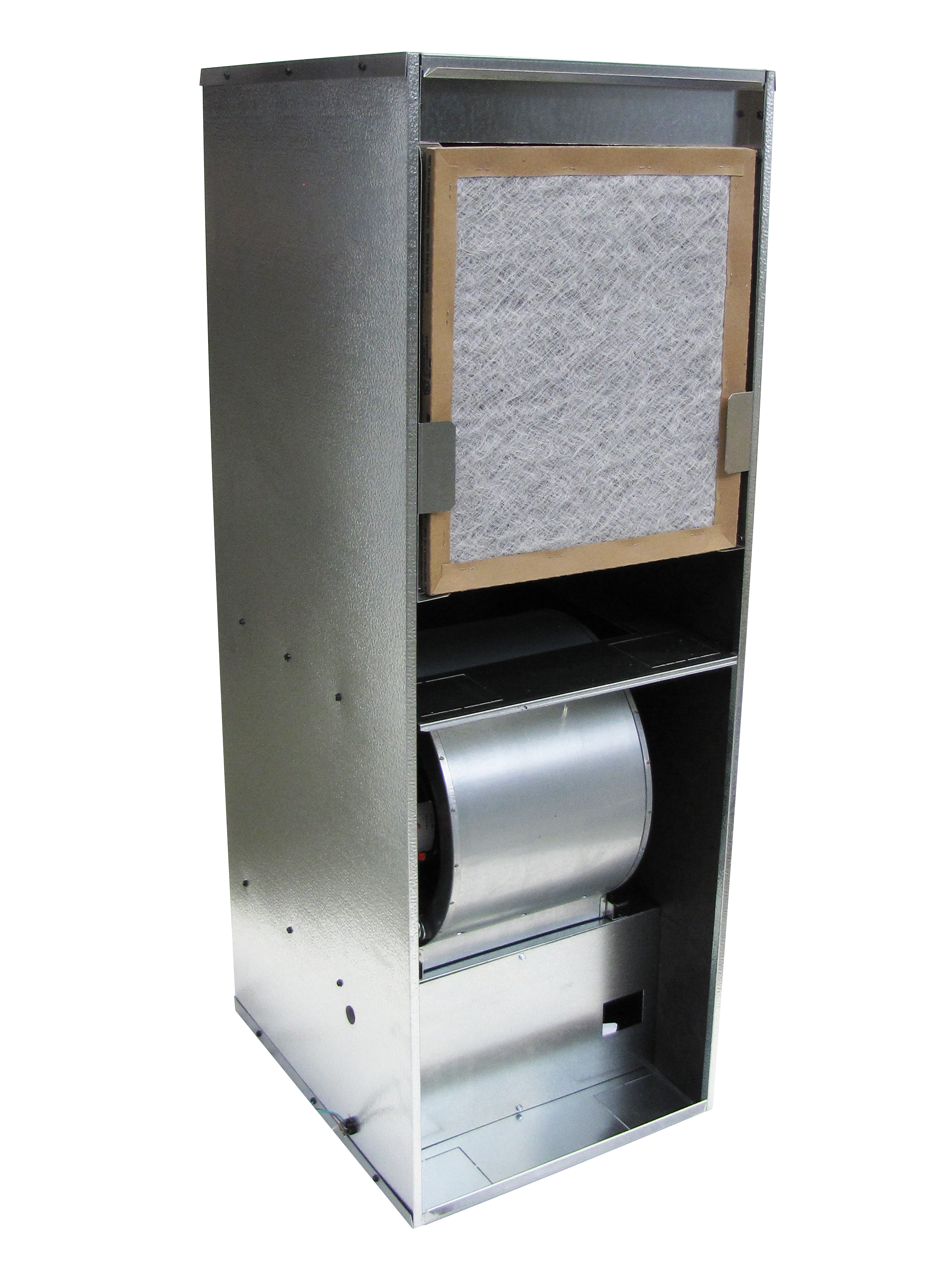

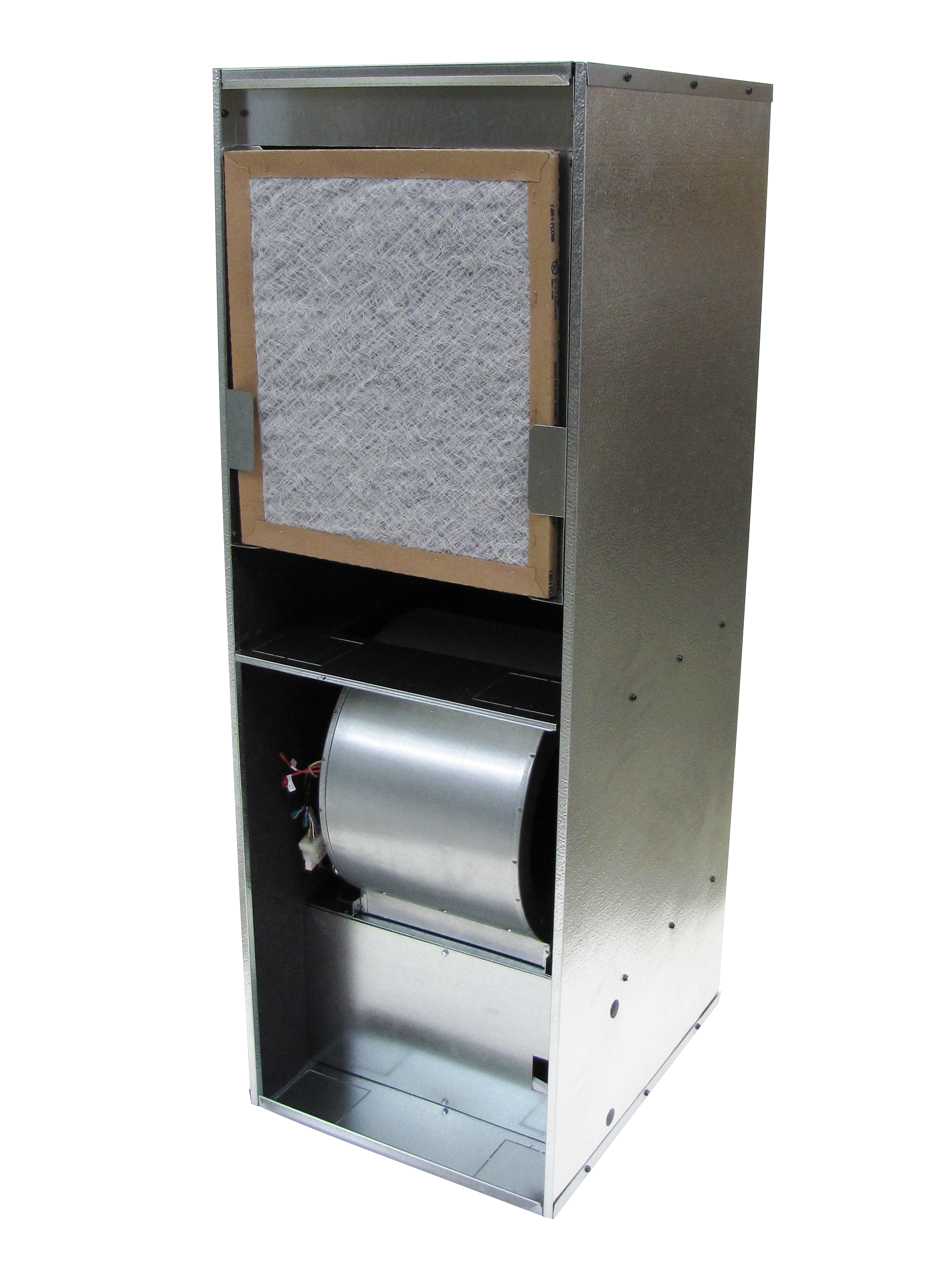

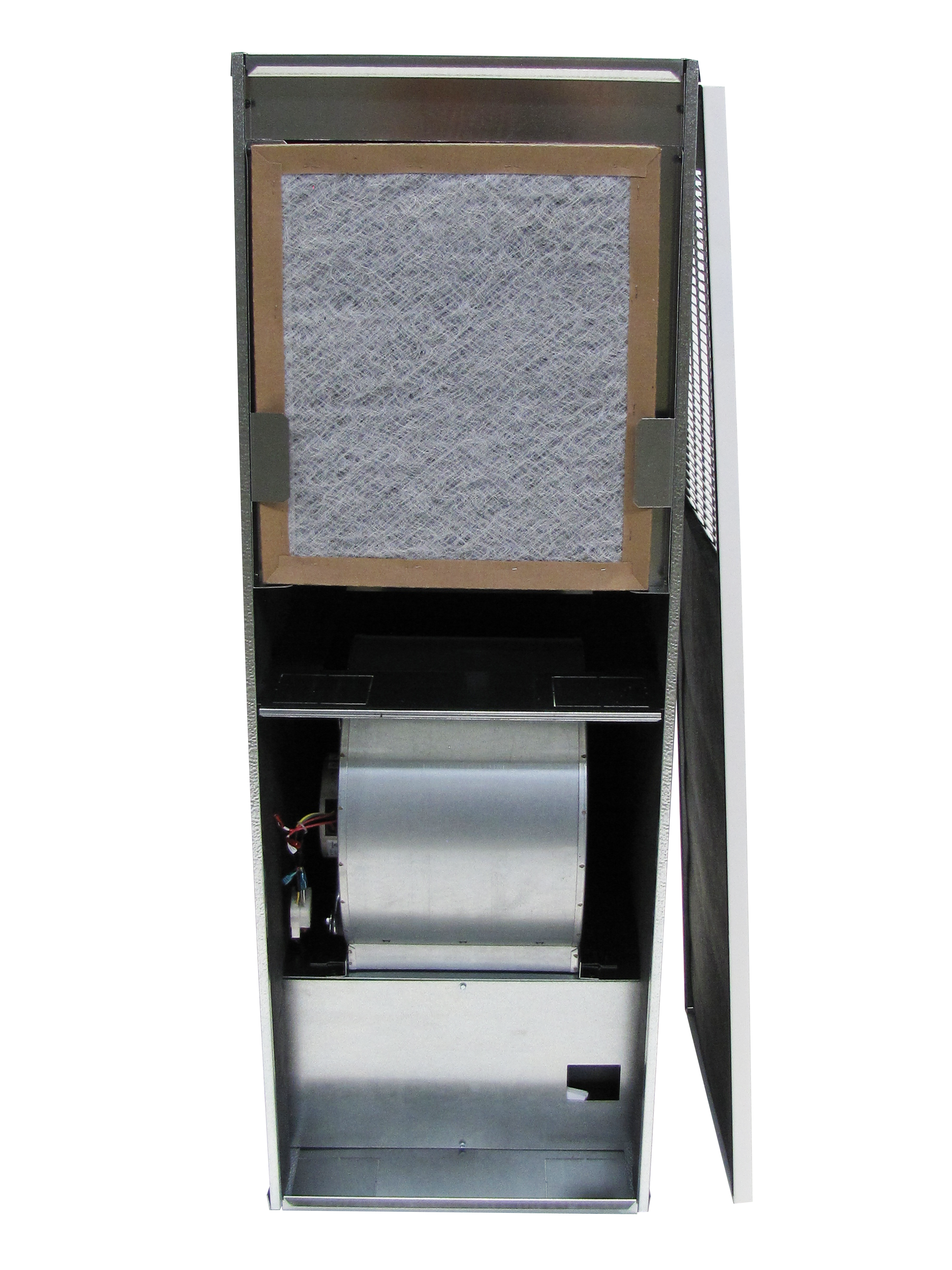

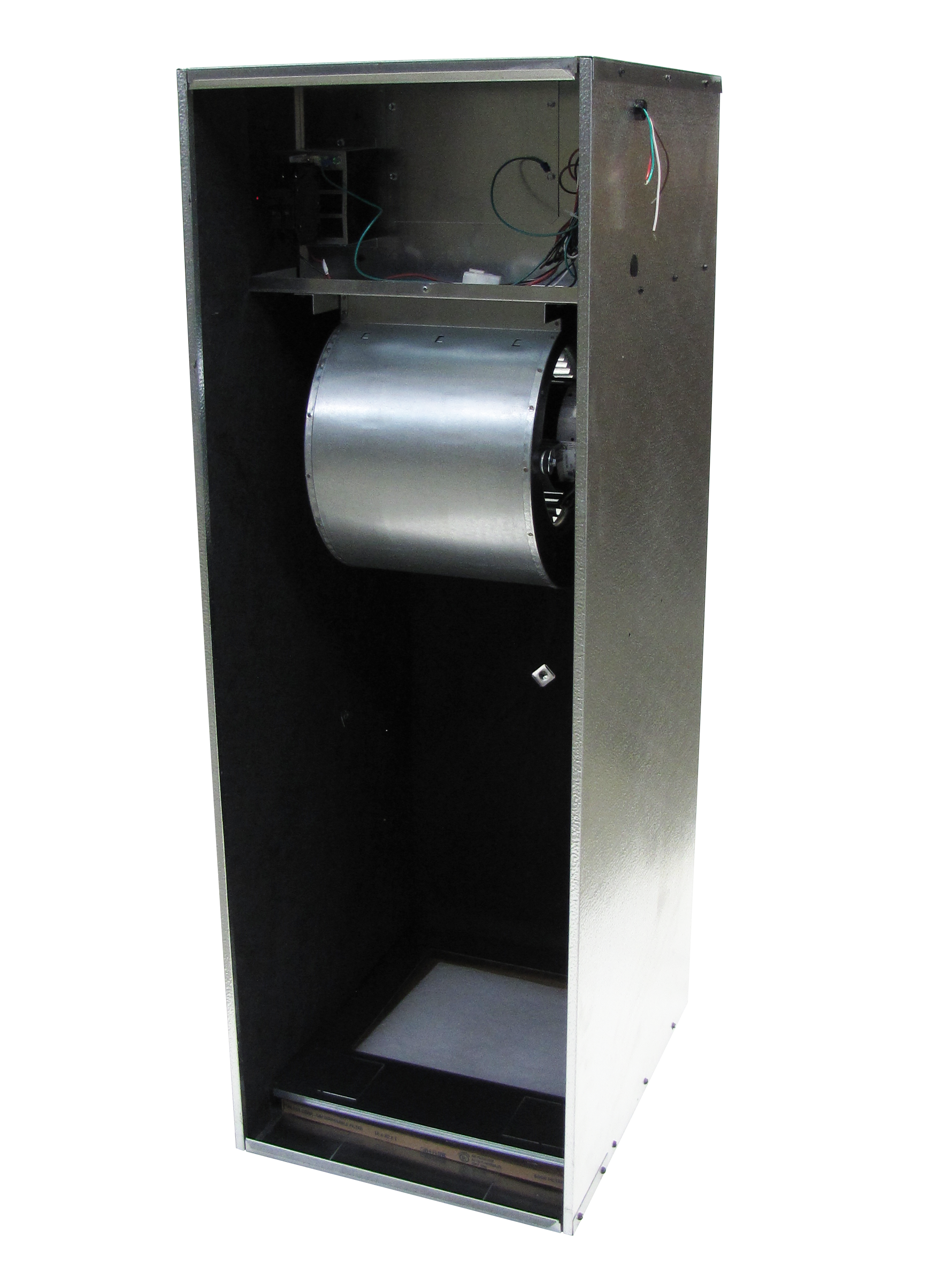

• Rail-mounted blower assembly easily removed for service.
• Redesigned control panel for enhanced interface to wiring and components.

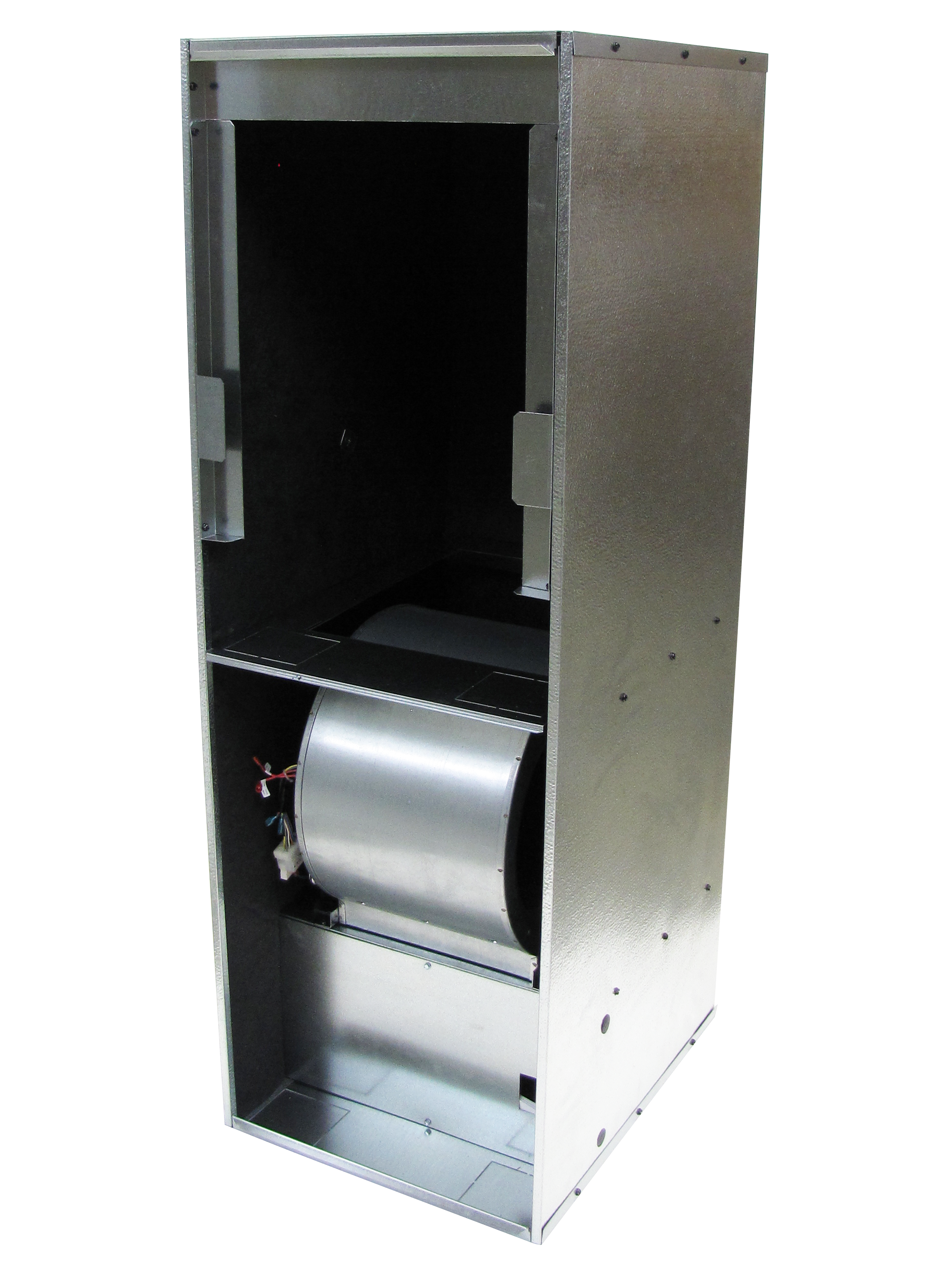

• Sloped coil shelf for optimal condensate management.

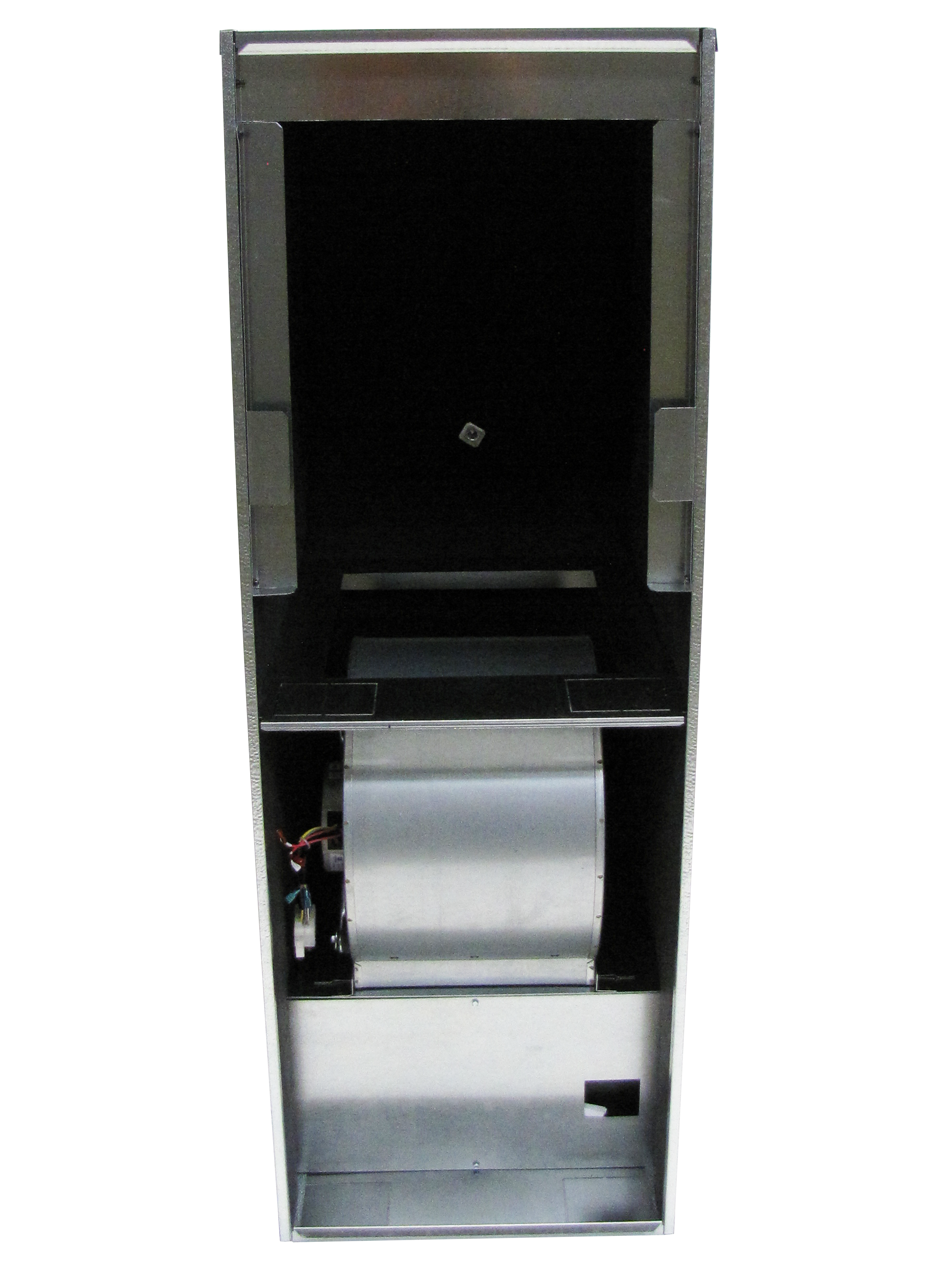

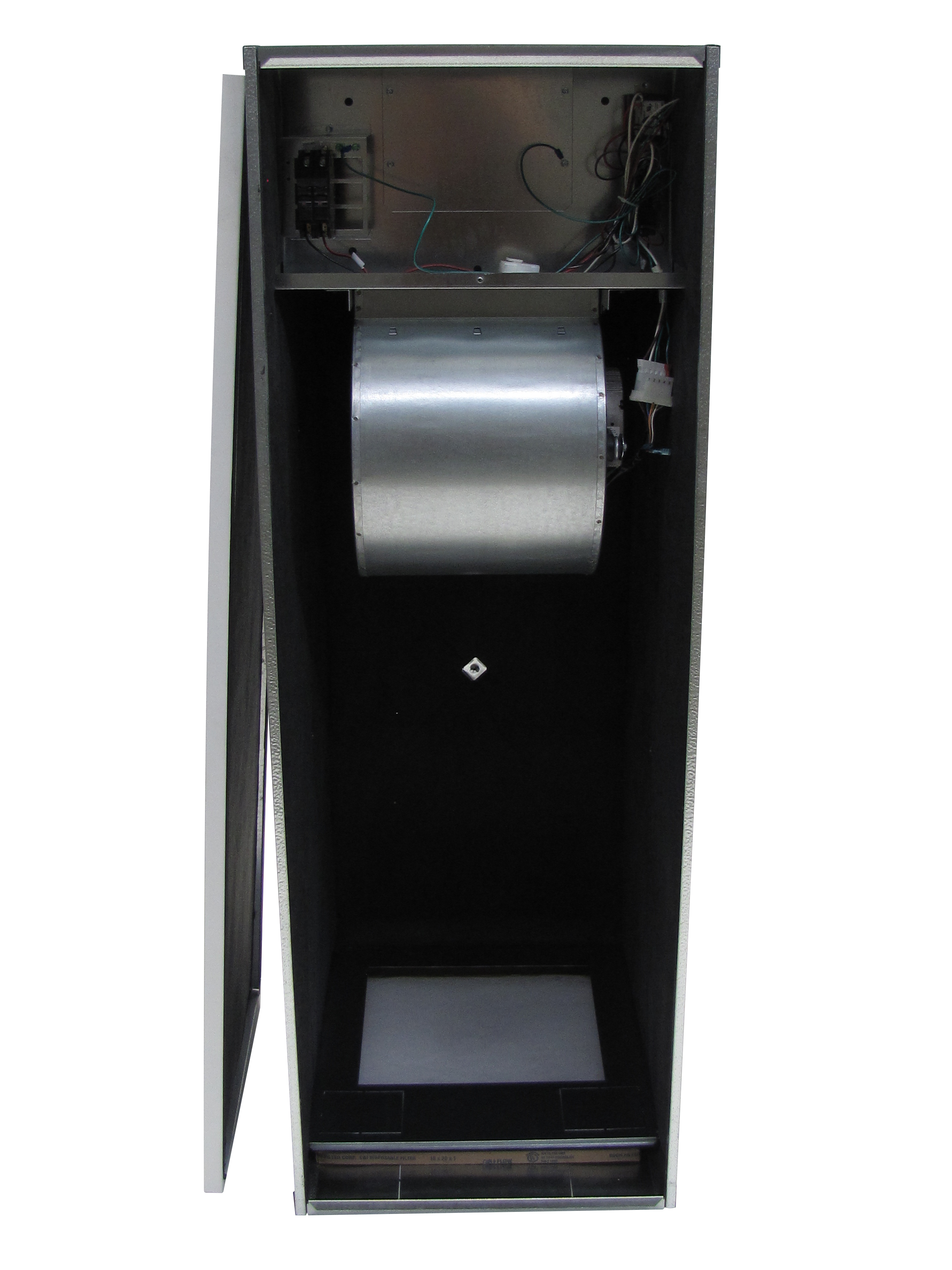

APPLICATION VERSATILITY
Designed for the manufactured home market with flexibility in mind. One unit for all, Downflow (Front Return) or Upflow (Bottom Return) as shipped (field-convertible for downflow-front & top return and downflow-top return). Can also be field configured to opposite configuration with the proper conversion kit. (Kits sold separately). 2 – 5 tons of cooling or heating airflow with a range of electric heat kits.
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance. In accordance to UL 60335 Refrigerant Detection Systems are factory-installed on A2L refrigerant ready air handlers.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
MOTOR
240-Volt constant torque ECM speeds and torques are controlled by software embedded in the motor to maintain constant torque. Motors are pre-programmed at the factory. Direct drive blowers circulate air quietly and efficiently. Motor speeds and torques programmed in the motor. Blowers mounted on rails so they can be easily removed for service.
CABINET
Sturdy, galvanized steel cabinet with painted front panels. Cabinet fully insulated with 1/2” micro mat non-hygroscopic insulation to prevent sweating, to encapsulate glass fibers, and to provide excellent R-value. Stick pins ensure insulation remains in place.
MODULAR ELECTRIC HEAT KITS
Heat kits available with either circuit breakers or terminal blocks. Available from 3 to 20 KW. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
ELECTRONIC CIRCUIT BOARD
Electronic circuit board provides 30 secs ON/OFF blower time delay extracting more heat/cool from the coil. Automotive pull-style fuse integrated into board for easy diagnosis and replacement of fuse.

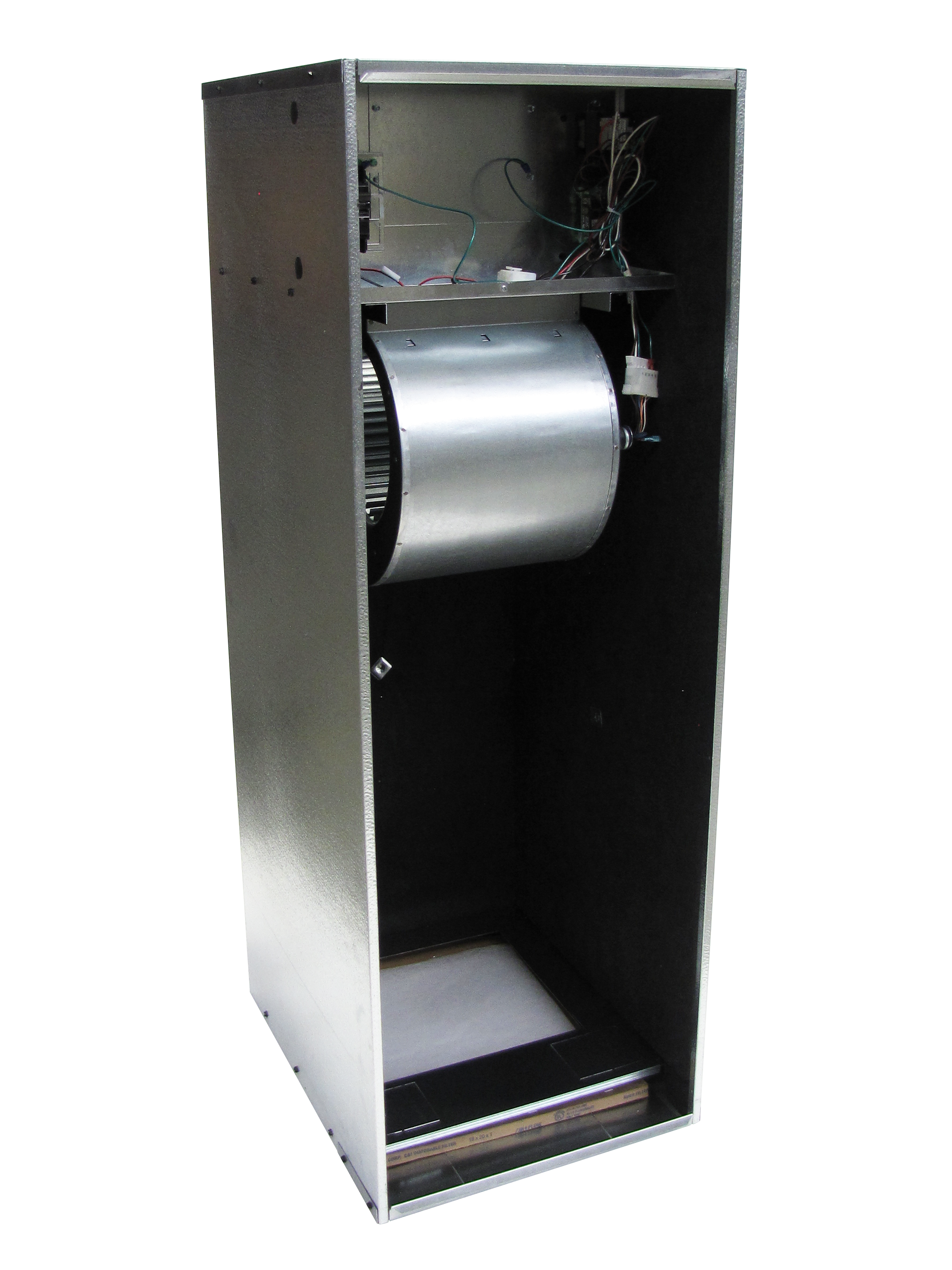

BLOWER
Direct drive multi-speed blowers circulate air quietly and efficiently. ECM motors in the AED/U-(S/L) allows for precise air volume selection. Motor speeds can be easily selected via motor terminals. Blowers mounted on rails so they can be easily removed for service.
WARRANTY
Five-year limited parts warranty with registration.
