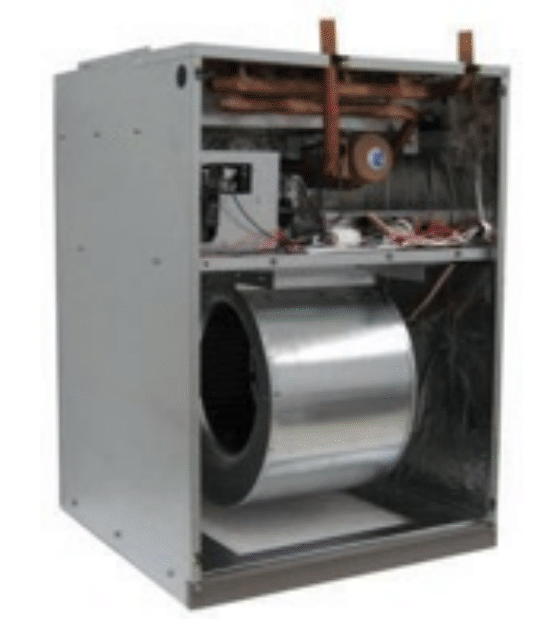

AFL Series Multi-Position High Efficiency Hydronic Furnace

Features and Benefits

APPLICATION VERSATILITY
Upflow, downflow, horizontal left or horizontal right as shipped.
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance. In accordance to UL 60335 Refrigerant Detection Systems are factory-installed on A2L refrigerant ready air handlers.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with (RDS) Refrigerant Detection System.

120V Constant Torque ECM Motor (Hydronic Heat)
Constant torque ECM speeds and torques are controlled by embedded motor software and factory pre-programmed. Direct drive blowers circulate air quietly and efficiently. Air moving system is plated mounted to allow for easy removal and service.

CABINET
Sturdy, low profile galvanized steel cabinet with painted front panels. Cabinet fully insulated with ½” faced insulation to prevent sweating, to encapsulate glass fibers, and to provide excellent R-value. Stick pins ensure insulation remains in place. Units ship with disposable filter in filter rack.

MODULAR HYDRONIC HEAT KITS
Standard Heats kits available with either circuit breakers or terminal blocks and are easily installed in the field using molex plugs or can be ordered factory-installed. Freeze stat is standard, wired into circulating pump control circuit. Controls are accessible from the front for easy service. Electrical connections can be made from the top or left. Fan time delay relay standard for increased efficiency. Heat kits are available with or without circulating pump and check valve. Units are provided with auxiliary relay for remote pump. Schrader ports are standard on water-out manifold, hose bib available as an option.

BLOWER
Direct drive multi-speed blowers circulate air quietly and efficiently and allow for precise air volume selection. 5 Motor speeds can be easily selected via motor terminals. Blowers mounted on rails so they can be easily removed for service.

WARRANTY
Five-year limited parts warranty with registration.
