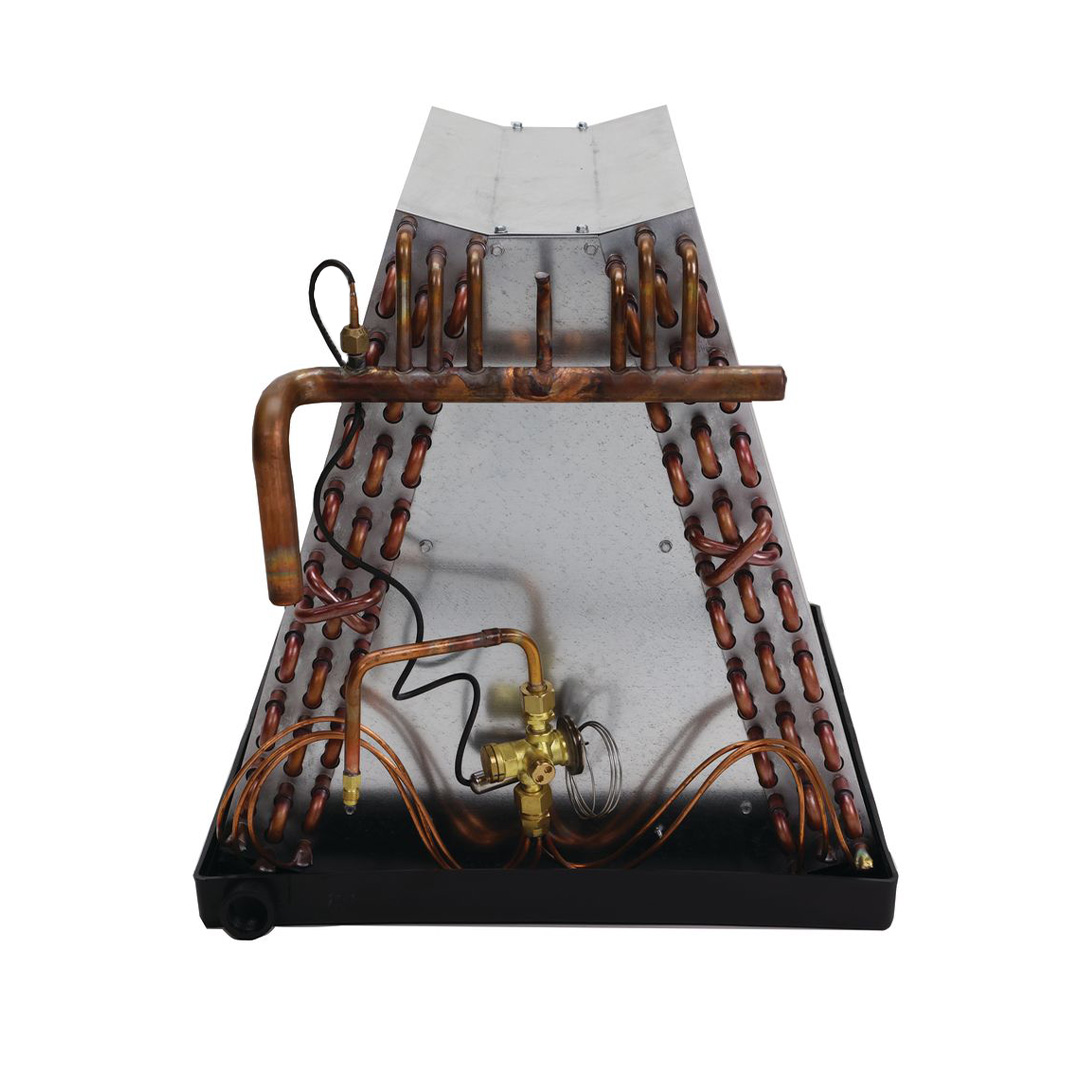

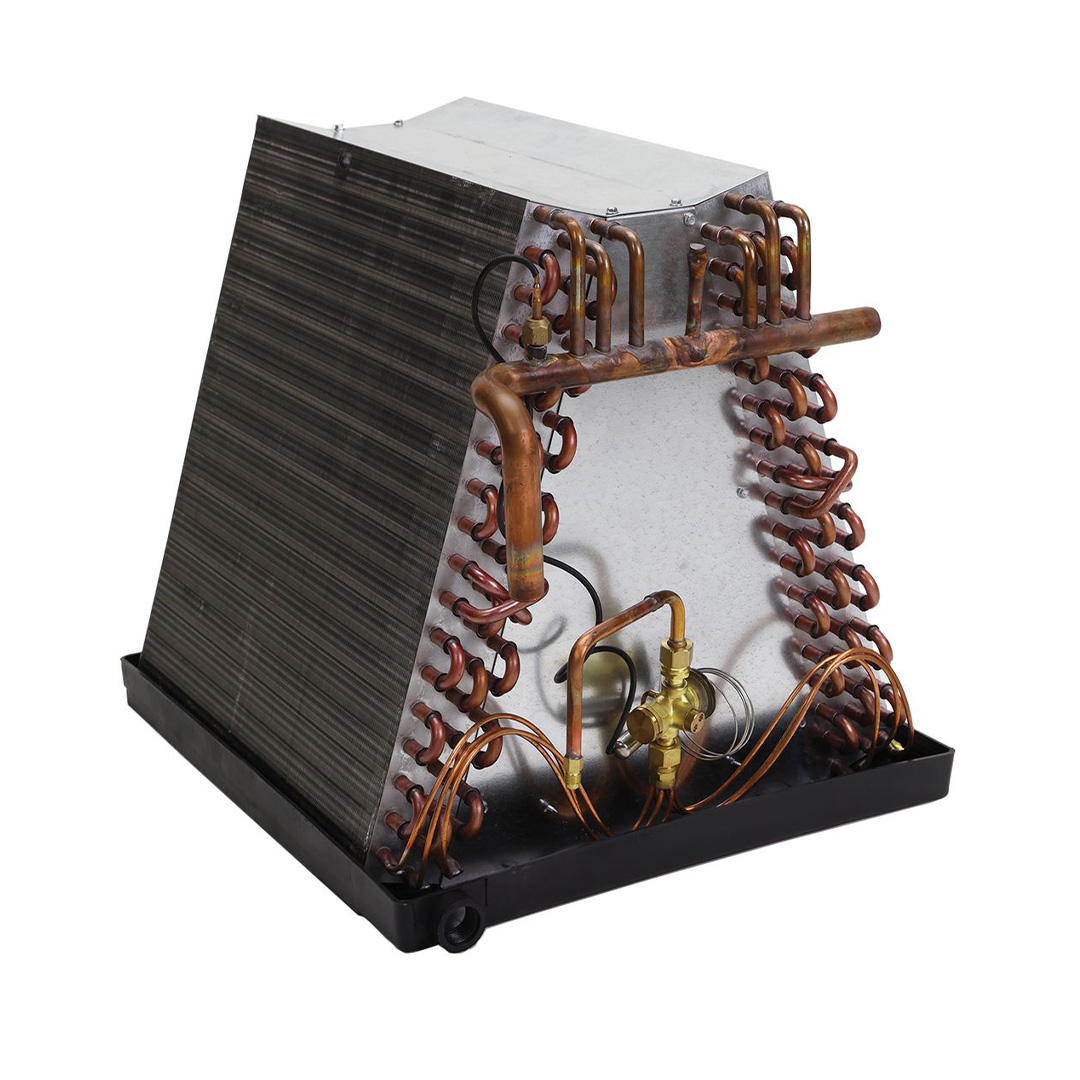

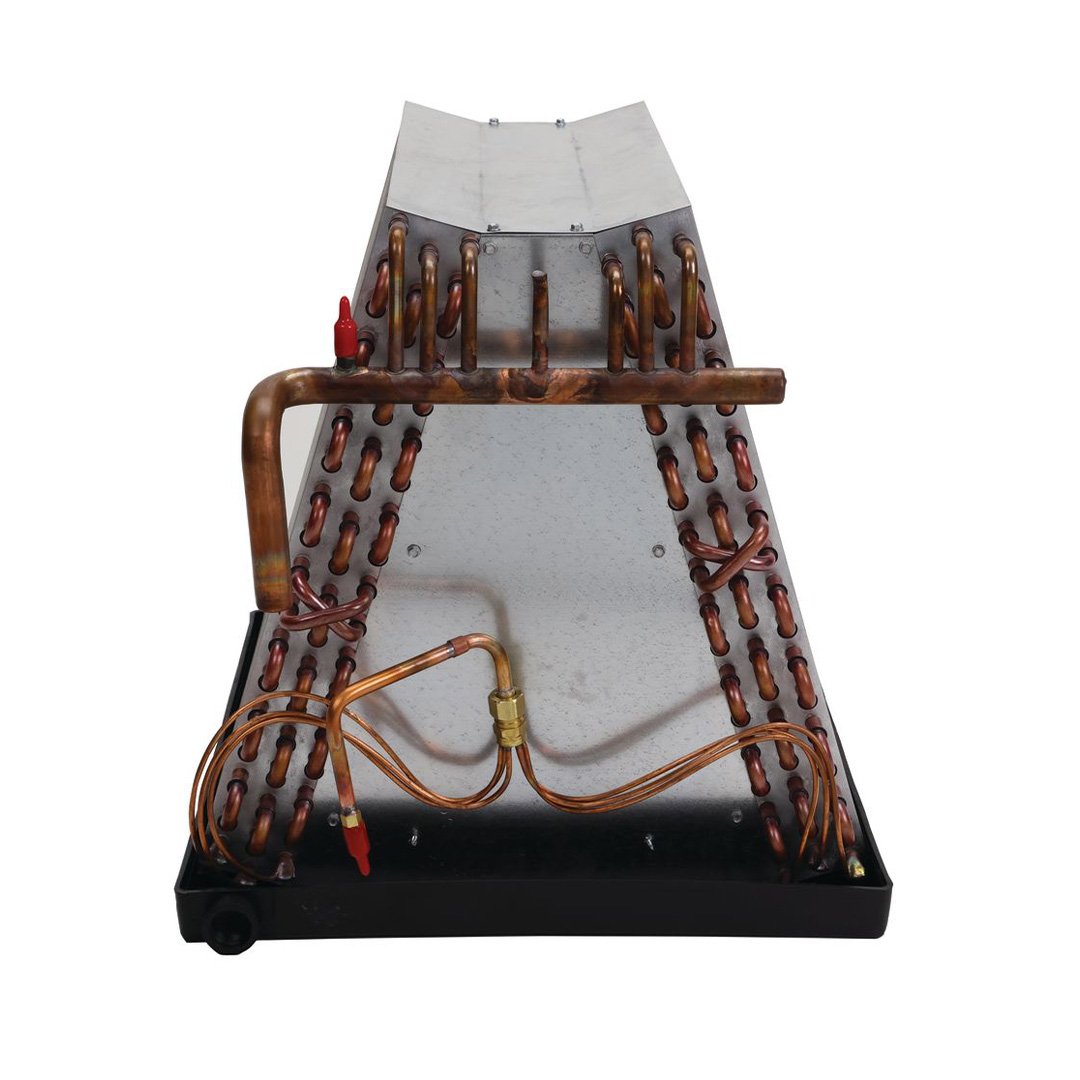

CM Series Uncased Downflow Coils For use with Manufactured Home Furnaces

Features and Benefits

• Rifled copper tubing, enhanced aluminum fins.
• Immersion-tested at 500 psi, then nitrogen-pressurized and sealed.
• Left-hand refrigerant and plumbing connections, with downturn suction line for easy installation in manufactured housing applications.
• Downflow plates are included and the special Manufactured Housing drain hose.
• Fully insulated cabinets with faced insulation
• Liquid line – 3/8” ODS, suction line – 3/4” ODS on 1-1/2 – 3 ton and 7/8” ODS on 3-1/2 – 5 ton.
• Liquid line Schrader valve for hiss-testing.
• Heavy duty polypropylene drain pans.
• Drain connection: 177L pans have single LH 3/4” FPT, 195L pans have quad drains, 3/4” FPT.
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for use with R-22, R-410A, R-454A, and R-32 when proper metering device is used.
• Ten-year limited warranty.
