DE Series High Efficiency Aluminum Cased Multi-Position Coils
Features and Benefits
APPLICATION VERSATILITY
• Upflow standard; downflow with field-installed kit, sold separately.
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for use with R-22, R-410A, R-454B, and R-32 when proper metering device is used.
FEATURES

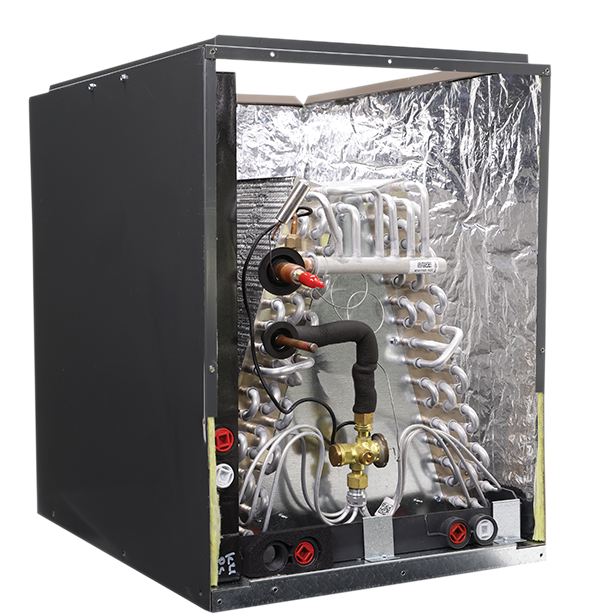

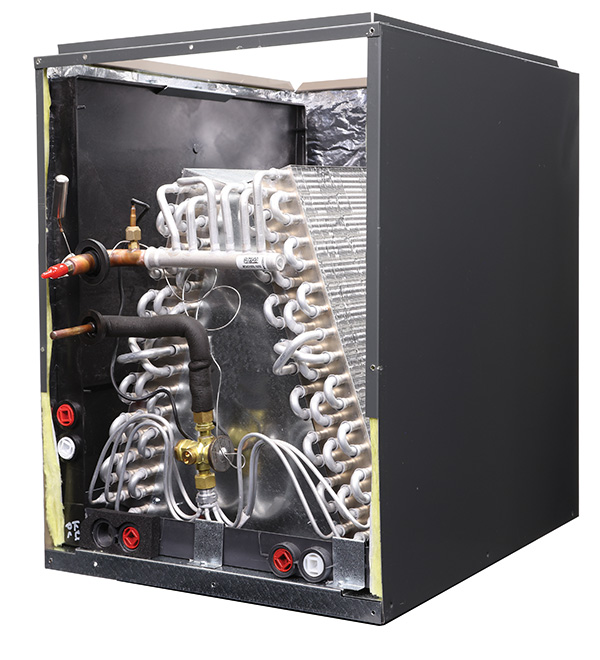

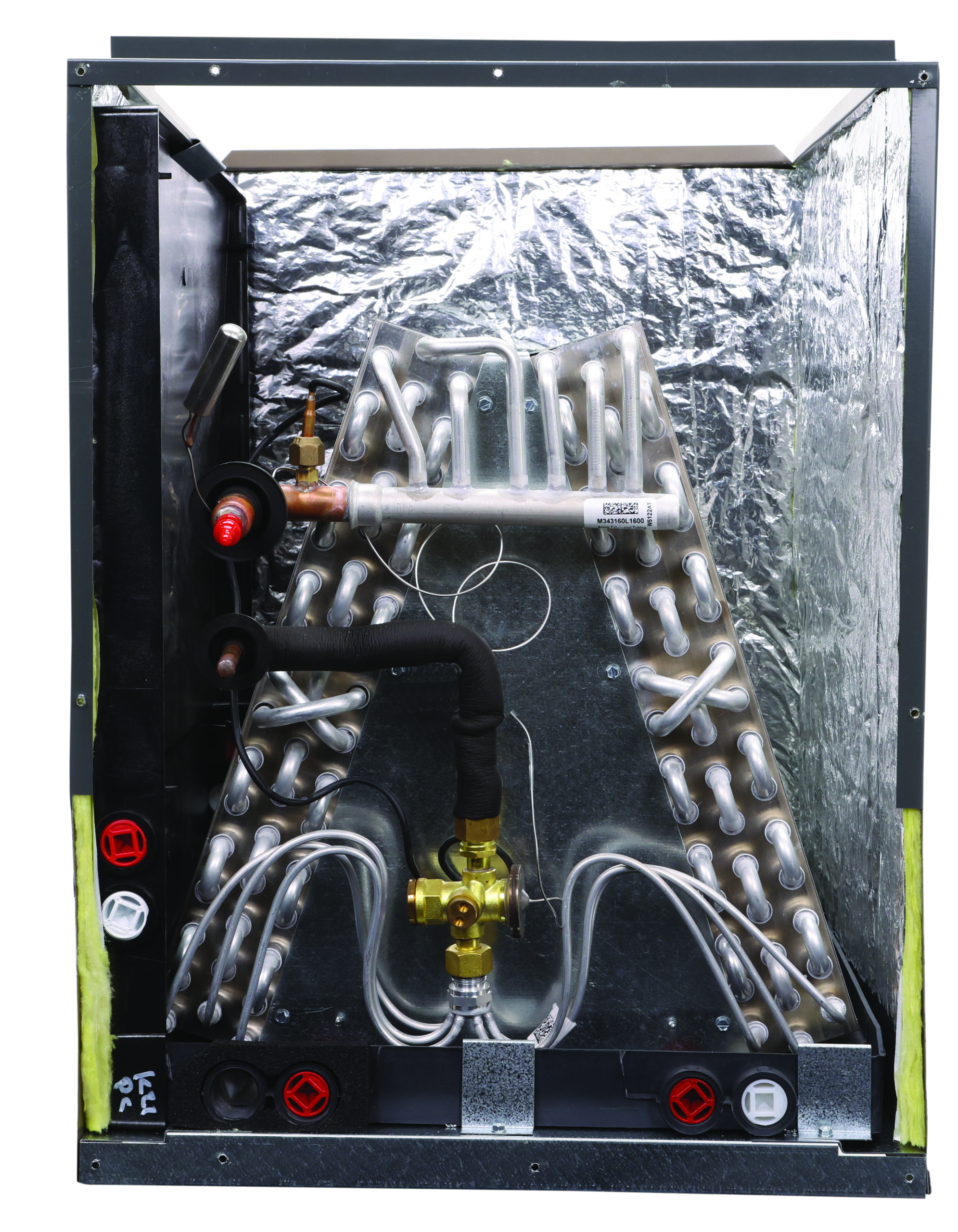

• Rifled aluminum tubing, enhanced aluminum fins.
• Heavy duty plastic drain pans standard.

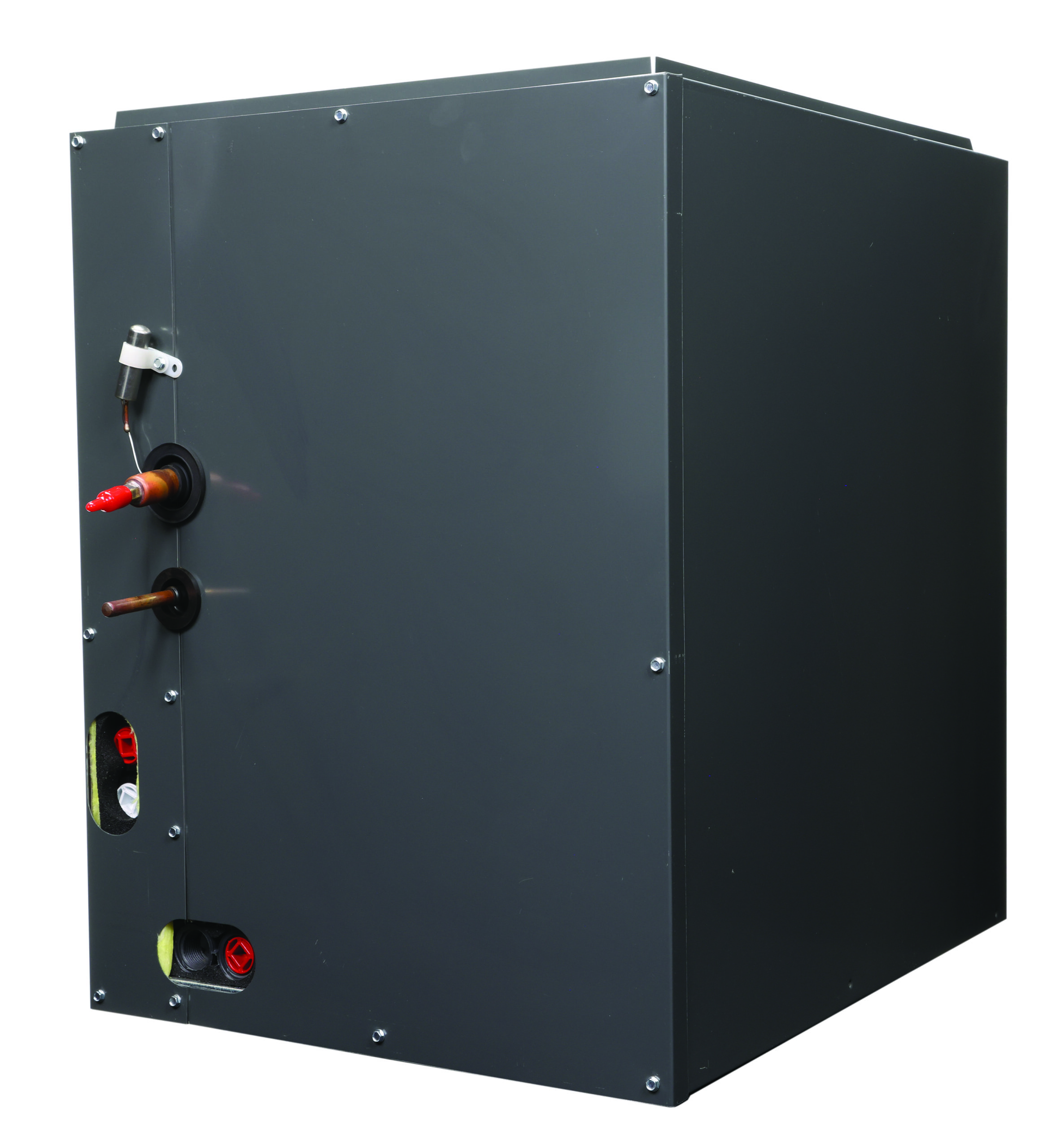

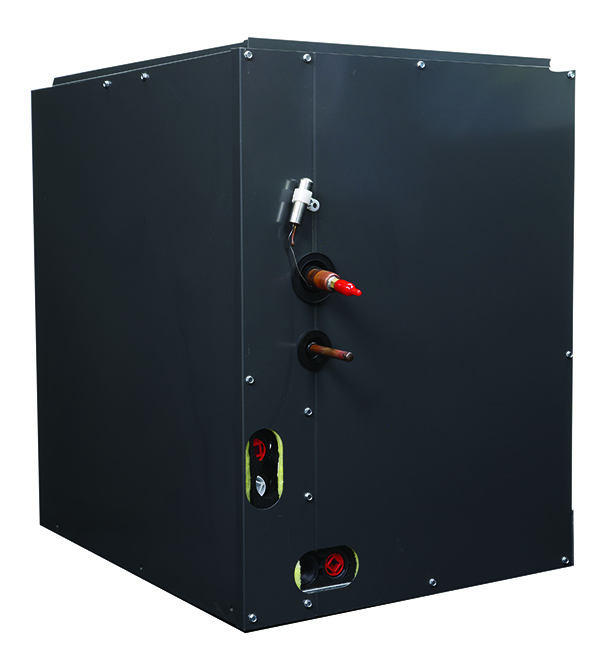

• Embossed galvanized steel cabinets standard with painted options for OEM color.
• Cabinets fully insulated foil-faced insulation.

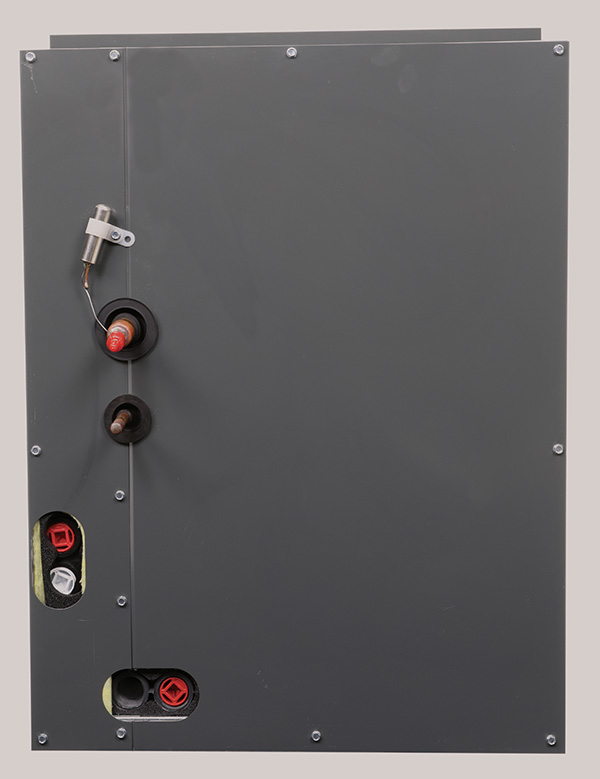

• Split access doors in front of cabinet for easy service access.
REFRIGERANT & PLUMBING CONNECTIONS:
• Left or right-hand refrigerant and plumbing connections.
• Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed for maximum reliability. Schrader provided for pressure assurance testing.
— Liquid line 3/8” ODS for DE24-36, 7/8” for DE42-60.
WARRANTY
• Ten-year limited warranty with registration.
NOTE
Duct opening dimensions can be ascertained by subtracting 1.50” for top opening width/depth, 3/4” for bottom opening.
1) Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290ºF+/-5ºF. Specialty metal drain pans for these applications.
2) Metal drain pan.
CUSTOMIZATION
• Factory or field-installed TXV available.
• High-temperature plastic drain pan.
• OEM color-matched cabinets.
• Refrigerant Detection System (RDS) kit factory-installed.
