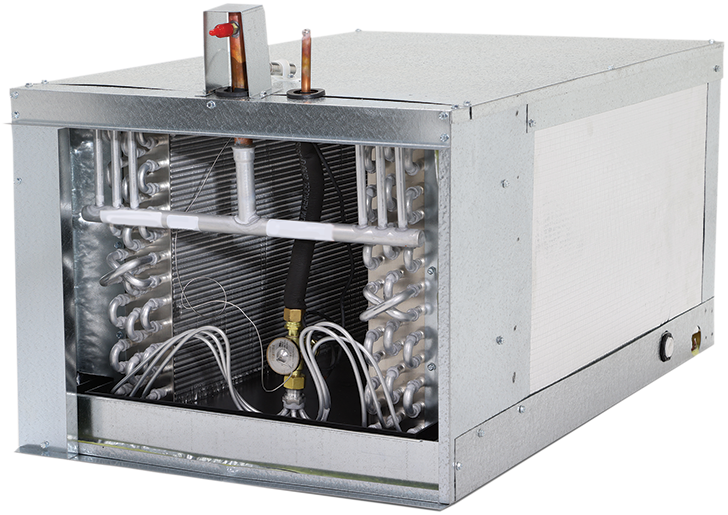

DR Series Dedicated Horizontal Plenum Coil with Built-In Auxiliary Drain Pan

Features and Benefits

APPLICATION VERSATILITY
• ETL listed for use with R-22, R-410A, R-454A, and R-32 when proper metering device is used.
• AHRI certifiable with all brands of A/C and heat pump systems.

FEATURES
• Patented design (Patent No. 8,869,548 B2).
• Plenum sides and end constructed of foil-backed faced fiberglass duct-board. Plenum top and bottom constructed of galvanized steel.
• Split access doors in front of cabinet for easy service access.
• Built-in auxiliary drain pan with 3/4” FPT.
• Plastic drain pans (primary and secondary).

REFRIGERANT & PLUMBING CONNECTIONS:
Refrigerant lines exit from the top of the coil with Schrader valve for pressure assurance testing. Refrigerant and plumbing connections:
— Liquid line – 3/8” ODS
— Suction line
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” on 3-1/2-ton to 5-ton
• Externally mounted flowrator body or internally mounted factory-installed TXV.
• Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed for
maximum reliability.

WARRANTY
Ten-year limited warranty with registration.
