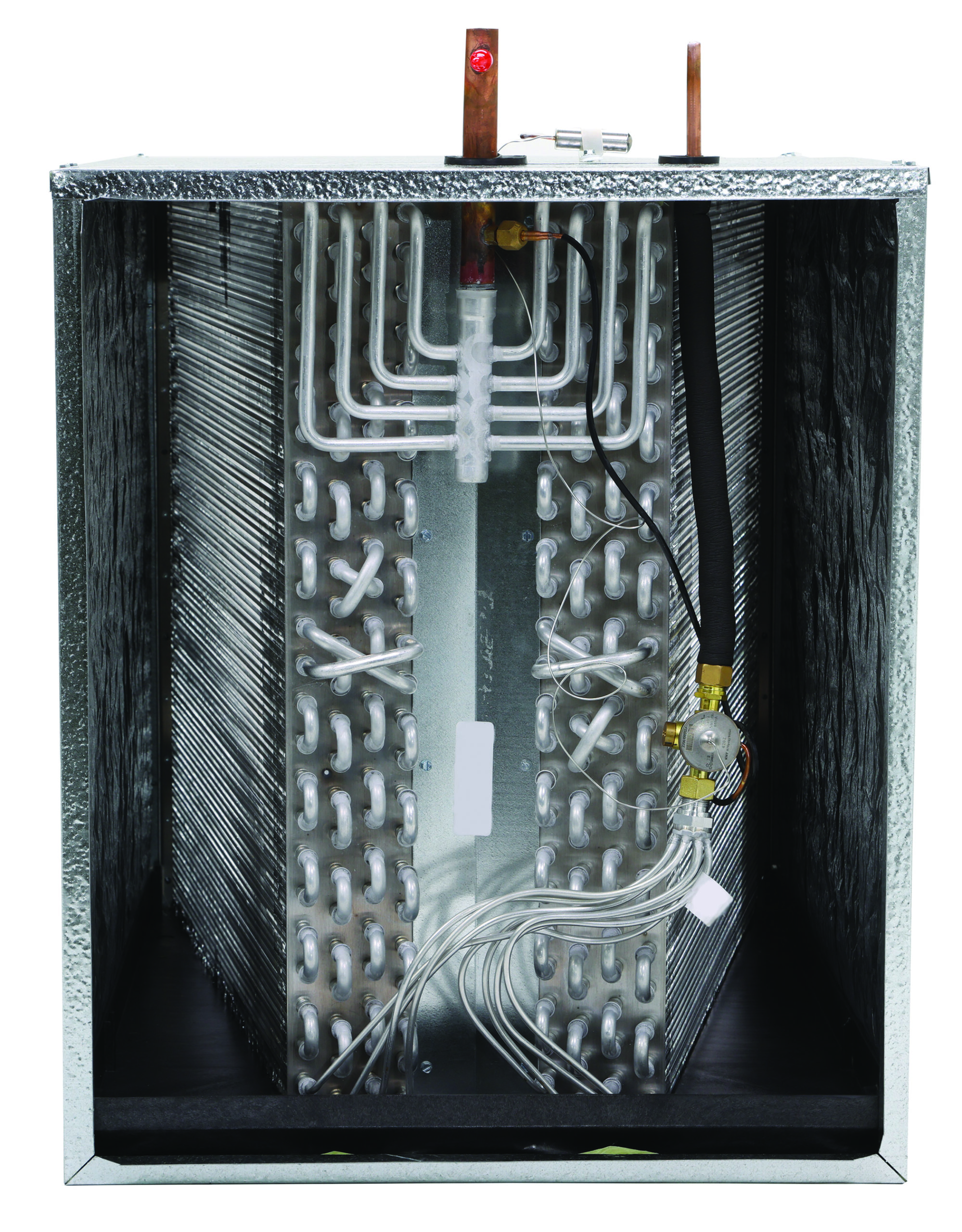

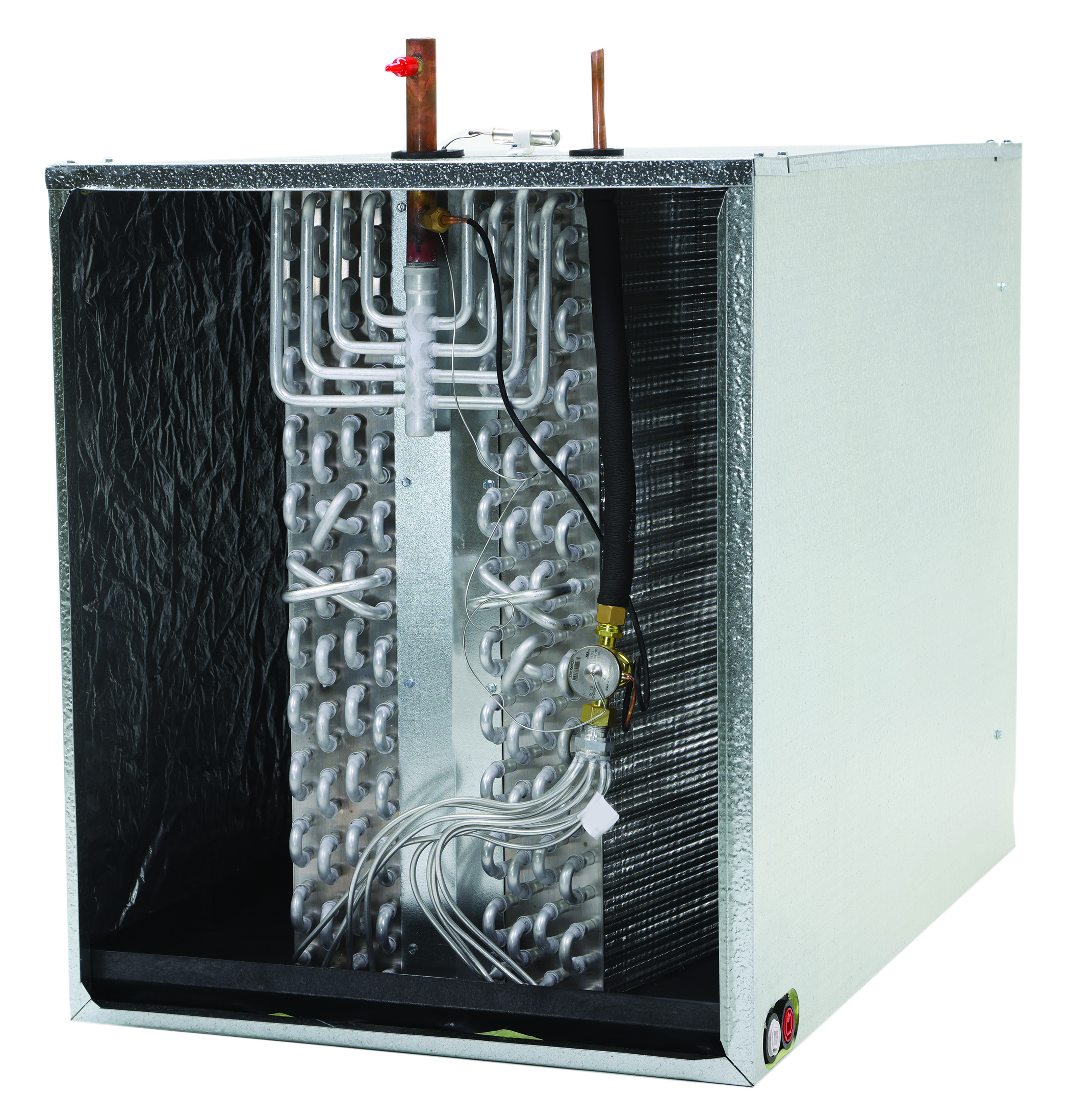

DX Series Aluminum Dedicated Horizontal Coils

Features and Benefits

APPLICATION VERSATILITY
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for use with R-22, R-410A, R-454B, and R-32 when proper metering device is used.

FEATURES
• Rifled aluminum tubing, enhanced aluminum fins.
• Inlet and outlet dimensions are identical (without end caps).
• Embossed galvanized cabinets standard. (OEM painted cabinet available.)
• Fully insulated cabinets with faced insulation.
• Three piece service door.

REFRIGERANT & PLUMBING CONNECTIONS:
• Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed for maximum reliability.
• Refrigerant lines exit top of coil. Liquid-line Schrader allows pre-installation pressure testing.
• Heavy duty plastic drain pan with four 3/4” FPT condensate drains (two per side).
• Built-in auxiliary drain pan.

WARRANTY
• Ten-year limited warranty with registration.
